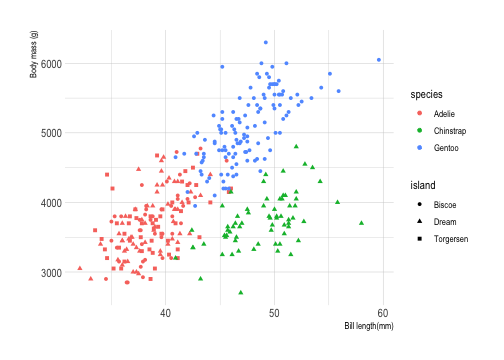

class: center, middle, inverse, title-slide # Pipelines and workflows ### Abhijit Dasgupta ### BIOF 339 --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> --- class: inverse, middle, center # Pipes in the tidyverse --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> ## Pipes --- We've seen two types of pipes in R. .pull-left[ The pipe operator `%>%` from the **magrittr** package ```r library(tidyverse) # includes magrittr library(palmerpenguins) penguins %>% group_by(species) %>% mutate(across(bill_length_mm:body_mass_g, function(x) replace_na(x, mean(x, na.rm=T)))) %>% ungroup() %>% summarise(across(bill_length_mm:body_mass_g, median)) ``` ] .pull-right[ The `+` symbol used as a pipe-like operator in **ggplot2** ```r ggplot(penguins, aes(x = bill_length_mm, y = body_mass_g))+ geom_point(aes(color = species, shape = island)) ``` ] --- You can combine the two pipes into a workflow to create a visualization .pull-left[ ```r penguins %>% group_by(species) %>% mutate(across(bill_length_mm:body_mass_g, function(x) replace_na(x, mean(x, na.rm=T)))) %>% ungroup() %>% ggplot(aes(x = bill_length_mm, * y = body_mass_g)) + geom_point(aes(shape = island, color = species))+ labs(x = 'Bill length(mm)', y = 'Body mass (g)') + hrbrthemes::theme_ipsum() ``` The **ggplot** pipe has to be at the end of the workflow. Also note, we're not adding the data argument to `ggplot` since it is tidyverse-compatible and slots the end of the previous pipe into the `data` argument ] .pull-right[ ![](04-pipes_files/figure-html/unnamed-chunk-5-1.png)<!-- --> ] --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> ## Rowwise operations --- The **dplyr** package allows you to do rowwise operations much more easily than before within a pipe using the `rowwise` function. For example .pull-left[ ```r mpg %>% select(manufacturer, year, cty, hwy) %>% rowwise() %>% mutate(avg_mpg = mean(c(hwy, cty))) ``` ``` # A tibble: 234 × 5 # Rowwise: manufacturer year cty hwy avg_mpg <chr> <int> <int> <int> <dbl> 1 audi 1999 18 29 23.5 2 audi 1999 21 29 25 3 audi 2008 20 31 25.5 4 audi 2008 21 30 25.5 5 audi 1999 16 26 21 6 audi 1999 18 26 22 7 audi 2008 18 27 22.5 8 audi 1999 18 26 22 9 audi 1999 16 25 20.5 10 audi 2008 20 28 24 # … with 224 more rows ``` ] .pull-right[ The `rowwise` function creates groups, one per row, and allows operations to occur along rows and across columns. > What would the result be if you omitted the `rowwise` function in the pipe? ] --- If you want to continue the pipe to incorporate the more traditonal column-wise operations, you need to use `ungroup` before proceeding .pull-left[ ```r mpg %>% select(manufacturer, year, cty, hwy) %>% rowwise() %>% mutate(avg_mpg = mean(c(hwy, cty))) %>% * ungroup() %>% ggplot(aes(x = avg_mpg)) + geom_histogram(bins = 50)+ ggthemes::theme_few() ``` ] .pull-right[ ![](04-pipes_files/figure-html/unnamed-chunk-8-1.png)<!-- --> ] --- There are some nice shortcuts, in line with the `select` function, even with rowwise operations .pull-left[ ```r diamonds %>% select(carat, x:z) %>% rowwise() %>% * mutate(vol = prod(c_across(x:z))) %>% ungroup() %>% ggplot(aes(x = vol, y = carat))+ geom_point() + ggthemes::theme_fivethirtyeight() ``` .footnote[Much more details about the possibilities of the `rowwise` function are available [here](https://dplyr.tidyverse.org/articles/rowwise.html)] ] .pull-right[ ![](04-pipes_files/figure-html/unnamed-chunk-9-1.png)<!-- --> ] --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> --- class: inverse, center, middle # Prepping data for modeling --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> ## Recipes --- .acid[ The idea of the **recipes** package is to define a recipe or blueprint that can be used to sequentially define the encodings and preprocessing of the data (i.e. “feature engineering”) ] This is done in the context of supervised modeling, e.g. regression, decision trees The idea is to define the dependent and independent variables, and then creating a pipeline to modify the independent variables through various statistical procedures. --- We'll start with the credit data in the **modeldata** package ```r library(recipes) library(modeldata) data("credit_data") glimpse(credit_data) ``` ``` Rows: 4,454 Columns: 14 $ Status <fct> good, good, bad, good, good, good, good, good, good, bad, go… $ Seniority <int> 9, 17, 10, 0, 0, 1, 29, 9, 0, 0, 6, 7, 8, 19, 0, 0, 15, 33, … $ Home <fct> rent, rent, owner, rent, rent, owner, owner, parents, owner,… $ Time <int> 60, 60, 36, 60, 36, 60, 60, 12, 60, 48, 48, 36, 60, 36, 18, … $ Age <int> 30, 58, 46, 24, 26, 36, 44, 27, 32, 41, 34, 29, 30, 37, 21, … $ Marital <fct> married, widow, married, single, single, married, married, s… $ Records <fct> no, no, yes, no, no, no, no, no, no, no, no, no, no, no, yes… $ Job <fct> freelance, fixed, freelance, fixed, fixed, fixed, fixed, fix… $ Expenses <int> 73, 48, 90, 63, 46, 75, 75, 35, 90, 90, 60, 60, 75, 75, 35, … $ Income <int> 129, 131, 200, 182, 107, 214, 125, 80, 107, 80, 125, 121, 19… $ Assets <int> 0, 0, 3000, 2500, 0, 3500, 10000, 0, 15000, 0, 4000, 3000, 5… $ Debt <int> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2500, 260, 0, 0, 0, 2000… $ Amount <int> 800, 1000, 2000, 900, 310, 650, 1600, 200, 1200, 1200, 1150,… $ Price <int> 846, 1658, 2985, 1325, 910, 1645, 1800, 1093, 1957, 1468, 15… ``` --- Create an initial recipe based on the model that will be fit ```r rec <- recipe(Status ~ Seniority + Time + Age + Records, data = credit_data) ``` .pull-left[ ```r rec ``` ``` Data Recipe Inputs: role #variables outcome 1 predictor 4 ``` ] .pull-right[ ```r summary(rec, original=TRUE) ``` ``` # A tibble: 5 × 4 variable type role source <chr> <chr> <chr> <chr> 1 Seniority numeric predictor original 2 Time numeric predictor original 3 Age numeric predictor original 4 Records nominal predictor original 5 Status nominal outcome original ``` ] --- .pull-left[ Add a step to convert nominal variables into dummies ```r (dummied <- rec %>% step_dummy(Records)) ``` ``` Data Recipe Inputs: role #variables outcome 1 predictor 4 Operations: Dummy variables from Records ``` ] .pull-right[ Then apply it to your data ```r dummied <- prep(dummied, training = credit_data) with_dummy <- bake(dummied, new_data = credit_data) head(with_dummy) ``` ``` # A tibble: 6 × 5 Seniority Time Age Status Records_yes <int> <int> <int> <fct> <dbl> 1 9 60 30 good 0 2 17 60 58 good 0 3 10 36 46 bad 1 4 0 60 24 good 0 5 0 36 26 good 0 6 1 60 36 good 0 ``` ] --- The **recipes** package provides a rich variety of data steps that can be used to prepare a data set. ```r iris_recipe <- iris %>% recipe(Species ~ .) %>% step_corr(all_predictors()) %>% step_center(all_predictors(), -all_outcomes()) %>% step_scale(all_predictors() , -all_outcomes()) %>% prep() iris_recipe ``` ``` Data Recipe Inputs: role #variables outcome 1 predictor 4 Training data contained 150 data points and no missing data. Operations: Correlation filter removed Petal.Length [trained] Centering for Sepal.Length, Sepal.Width, Petal.Width [trained] Scaling for Sepal.Length, Sepal.Width, Petal.Width [trained] ``` --- This recipe can then be applied to the same or a different dataset ```r iris1 <- bake(iris_recipe, iris) glimpse(iris1) ``` ``` Rows: 150 Columns: 4 $ Sepal.Length <dbl> -0.89767388, -1.13920048, -1.38072709, -1.50149039, -1.01… $ Sepal.Width <dbl> 1.01560199, -0.13153881, 0.32731751, 0.09788935, 1.245030… $ Petal.Width <dbl> -1.3110521, -1.3110521, -1.3110521, -1.3110521, -1.311052… $ Species <fct> setosa, setosa, setosa, setosa, setosa, setosa, setosa, s… ``` .footnote[You can go into more details at [tidymodels.org](https://www.tidymodels.org/), with a nice introduction [here](https://rviews.rstudio.com/2019/06/19/a-gentle-intro-to-tidymodels/)] --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> --- class: inverse, middle, center # Workflows --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span> </div> ## Workflows --- background-image: url(../img/0246OS_00_02.png) background-size: contain --- background-image: url(../img/data-science-explore.png) background-size: contain --- background-image: url(../img/tidypipeline.jpg) background-size: contain --- + Create one script file for each node in your workflow + Save intermediate data or objects using `saveRDS` so that - they can be imported quickly by the next step - Each link in the chain can be checked and verified + You can summarize your entire workflow within one script: ```r source('01-ingest.R') source('02-munge.R') source('03-exploreviz.R') source('04-eda.R') source('05-models.R') source('06-results.R') ``` --- ### A personal story I wrote a paper using R Markdown with a reasonable pipeline for data analyses, modeling and visualization Output to Word for submission to a journal Three months later, reviews came in asking for using updated data Changed the data at the beginning of my workflow, ran the workflow, and had revised manuscript in 10 minutes. .center[.heat[Quickest turnaround ever!!]] --- ### Some ideas ([*Efficient Programming*](https://csgillespie.github.io/efficientR/workflow.html) by Gillespie and Lovelace) 1. Start without writing code but with a clear mind and perhaps a pen and paper. This will ensure you keep your objectives at the forefront of your mind, without getting lost in the technology. 1. Make a plan. The size and nature will depend on the project but timelines, resources and ‘chunking’ the work will make you more effective when you start. 1. Select the packages you will use for implementing the plan early. Minutes spent researching and selecting from the available options could save hours in the future. 1. Document your work at every stage; work can only be effective if it’s communicated clearly and code can only be efficiently understood if it’s commented. 1. Make your entire workflow as reproducible as possible. knitr can help with this in the phase of documentation.
