class: center, middle, inverse, title-slide # Classical statistical models ### Abhijit Dasgupta ### BIOF 339 --- --- class: middle, center, inverse # Statistical models --- class: inverse, middle, center .bigblockquote[All models are wrong, but some are useful] .right[G.E.P. Box] --- # Models Models are our way of understanding nature, usually using some sort of mathematical expression Famous mathematical models include Newton's second law of motion, the laws of thermodynamics, the ideal gas law All probability distributions, like Gaussian, Binomial, Poisson, Gamma, are models Mendel's laws are models **that result in** particular mathematical models for inheritance and population prevalence --- # Models We use models all the time to describe our understanding of different processes + Cause-and-effect relationships -- + Supply-demand curves -- + Financial planning -- + Optimizing travel plans (perhaps including traffic like _Google Maps_) -- + Understanding the effects of change - Climate change - Rule changes via Congress or companies - Effect of a drug on disease outcomes - Effect of education and behavioral patterns on future earnings --- # Data-driven models > Can we use data collected on various aspects of a particular context to understand the relationships between the different aspects? + How does increased smoking affect your risk of getting lung cancer? (causality/association) - Does genetics matter? - Does the kind of smoking matter? - Does gender matter? --- # Data-driven models > Can we use data collected on various aspects of a particular context to understand the relationships between the different aspects? + What is your lifetime risk of breast cancer? (prediction) - What if you have a sister with breast cancer? - What if you had early menarche? - What if you are of Ashkenazi Jewish heritage? .right[[The Gail Model from NCI](https://bcrisktool.cancer.gov/)] --- # Association models These are more traditional, highly interpretative models that look at **how** different predictors affect outcome. + Linear regression + Logistic regression + Cox proportional hazards regression + Decision trees Since these models have a particular known structure determined by the modeler, they can be used on relatively small datasets You can easily understand which predictors have more "weight" in influencing the outcome You can literally write down how a prediction would be made --- # Predictive models These are more recent models that primarily look to provide good predictions of an outcome, and the way the predictions are made is left opaque (often called a _black box_) + Deep Learning (or Neural Networks) + Random Forests + Support Vector Machines + Gradient Boosting Machines These models require data to both determine the structure of the model as well as make the predictions, so they require lots of data to _train_ on The relative "weight" of predictors in influencing the **predictions** can be obtained The effect of individual predictors is not easily interpretable, though this is changing They require a different **philosophic perspective** than traditional association models --- ## R for statistical models We've seen that R is great for data munging and data visualizations R also can fit a wide variety of statistical models to data. In fact, most new models first are implemented in R (see CRAN and GitHub) Today we'll describe some standard popular models. Fitting most models follow the same pattern of code. --- # Datasets We will use the `pbc` data from the `survival` package, and the in-built `mtcars` dataset. ```r library(survival) str(pbc) ``` ``` 'data.frame': 418 obs. of 20 variables: $ id : int 1 2 3 4 5 6 7 8 9 10 ... $ time : int 400 4500 1012 1925 1504 2503 1832 2466 2400 51 ... $ status : int 2 0 2 2 1 2 0 2 2 2 ... $ trt : int 1 1 1 1 2 2 2 2 1 2 ... $ age : num 58.8 56.4 70.1 54.7 38.1 ... $ sex : Factor w/ 2 levels "m","f": 2 2 1 2 2 2 2 2 2 2 ... $ ascites : int 1 0 0 0 0 0 0 0 0 1 ... $ hepato : int 1 1 0 1 1 1 1 0 0 0 ... $ spiders : int 1 1 0 1 1 0 0 0 1 1 ... $ edema : num 1 0 0.5 0.5 0 0 0 0 0 1 ... $ bili : num 14.5 1.1 1.4 1.8 3.4 0.8 1 0.3 3.2 12.6 ... $ chol : int 261 302 176 244 279 248 322 280 562 200 ... $ albumin : num 2.6 4.14 3.48 2.54 3.53 3.98 4.09 4 3.08 2.74 ... $ copper : int 156 54 210 64 143 50 52 52 79 140 ... $ alk.phos: num 1718 7395 516 6122 671 ... $ ast : num 137.9 113.5 96.1 60.6 113.2 ... $ trig : int 172 88 55 92 72 63 213 189 88 143 ... $ platelet: int 190 221 151 183 136 NA 204 373 251 302 ... $ protime : num 12.2 10.6 12 10.3 10.9 11 9.7 11 11 11.5 ... $ stage : int 4 3 4 4 3 3 3 3 2 4 ... ``` --- class: inverse, middle, center # The formula interface --- # Representing model relationships In R, there is a particularly convenient way to express models, where you have - one dependent variable - one or more independent variables, with possible transformations and interactions ``` y ~ x1 + x2 + x1:x2 + I(x3^2) + x4*x5 ``` -- `y` depends on ... -- - `x1` and `x2` linearly -- - the interaction of `x1` and `x2` (represented as `x1:x2`) -- - the square of `x3` (the `I()` notation ensures that the `^` symbol is interpreted correctly) -- - `x4`, `x5` and their interaction (same as `x4 + x5 + x4:x5`) --- # Representing model relationships ``` y ~ x1 + x2 + x1:x2 + I(x3^2) + x4*x5 ``` This interpretation holds for the vast majority of statistical models in R - For decision trees and random forests and neural networks, don't add interactions or transformations, since the model will try to figure those out on their own --- # Our first model ```r myLinearModel <- lm(chol ~ bili + albumin + copper + sex, data = pbc) ``` Note that everything in R is an **object**, so you can store a model in a variable name. This statement runs the model and stored the fitted model in `myLinearModel` .bg-light-blue.b--blue.ba.bw2.br3.ph4.mt2.center[ R does not interpret the model, evaluate the adequacy or appropriateness of the model, or comment on whether looking at the relationship between cholesterol and bilirubin makes any kind of sense. .f2[It just fits the model it is given] ] --- # Our first model ```r myLinearModel ``` ``` Call: lm(formula = chol ~ bili + albumin + copper + sex, data = pbc) Coefficients: (Intercept) bili albumin copper sexf 221.0571 22.7113 28.9076 -0.1888 -9.7605 ``` > Not very informative, is it? --- # Our first model ```r summary(myLinearModel) ``` ``` Call: lm(formula = chol ~ bili + albumin + copper + sex, data = pbc) Residuals: Min 1Q Median 3Q Max -580.83 -90.62 -34.79 37.96 1297.16 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 221.0571 135.6962 1.629 0.104 bili 22.7113 3.2821 6.920 3.14e-11 *** albumin 28.9076 33.8309 0.854 0.394 copper -0.1888 0.1743 -1.083 0.280 sexf -9.7605 40.8253 -0.239 0.811 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 214.3 on 277 degrees of freedom (136 observations deleted due to missingness) Multiple R-squared: 0.1638, Adjusted R-squared: 0.1517 F-statistic: 13.56 on 4 and 277 DF, p-value: 4.147e-10 ``` > A little better ??? Talk about the different metrics in this slide --- # Our first model ```r broom::tidy(myLinearModel) ``` ``` # A tibble: 5 × 5 term estimate std.error statistic p.value <chr> <dbl> <dbl> <dbl> <dbl> 1 (Intercept) 221. 136. 1.63 1.04e- 1 2 bili 22.7 3.28 6.92 3.14e-11 3 albumin 28.9 33.8 0.854 3.94e- 1 4 copper -0.189 0.174 -1.08 2.80e- 1 5 sexf -9.76 40.8 -0.239 8.11e- 1 ``` ```r broom::glance(myLinearModel) ``` ``` # A tibble: 1 × 12 r.squared adj.r.squared sigma statistic p.value df logLik AIC BIC <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> 1 0.164 0.152 214. 13.6 4.15e-10 4 -1911. 3834. 3856. # … with 3 more variables: deviance <dbl>, df.residual <int>, nobs <int> ``` --- # Our first model .pull-left[ ```r library(gtsummary) tbl_regression(myLinearModel) ```
Characteristic
Beta
95% CI
1
p-value
bili
23
16, 29
<0.001
albumin
29
-38, 96
0.4
copper
-0.19
-0.53, 0.15
0.3
sex
m
—
—
f
-9.8
-90, 71
0.8
1
CI = Confidence Interval
] .pull-right[ ```r library(stargazer) stargazer(myLinearModel, type='html') ``` <table style="text-align:center"><tr><td colspan="2" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left"></td><td><em>Dependent variable:</em></td></tr> <tr><td></td><td colspan="1" style="border-bottom: 1px solid black"></td></tr> <tr><td style="text-align:left"></td><td>chol</td></tr> <tr><td colspan="2" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left">bili</td><td>22.711<sup>***</sup></td></tr> <tr><td style="text-align:left"></td><td>(3.282)</td></tr> <tr><td style="text-align:left"></td><td></td></tr> <tr><td style="text-align:left">albumin</td><td>28.908</td></tr> <tr><td style="text-align:left"></td><td>(33.831)</td></tr> <tr><td style="text-align:left"></td><td></td></tr> <tr><td style="text-align:left">copper</td><td>-0.189</td></tr> <tr><td style="text-align:left"></td><td>(0.174)</td></tr> <tr><td style="text-align:left"></td><td></td></tr> <tr><td style="text-align:left">sexf</td><td>-9.760</td></tr> <tr><td style="text-align:left"></td><td>(40.825)</td></tr> <tr><td style="text-align:left"></td><td></td></tr> <tr><td style="text-align:left">Constant</td><td>221.057</td></tr> <tr><td style="text-align:left"></td><td>(135.696)</td></tr> <tr><td style="text-align:left"></td><td></td></tr> <tr><td colspan="2" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left">Observations</td><td>282</td></tr> <tr><td style="text-align:left">R<sup>2</sup></td><td>0.164</td></tr> <tr><td style="text-align:left">Adjusted R<sup>2</sup></td><td>0.152</td></tr> <tr><td style="text-align:left">Residual Std. Error</td><td>214.262 (df = 277)</td></tr> <tr><td style="text-align:left">F Statistic</td><td>13.560<sup>***</sup> (df = 4; 277)</td></tr> <tr><td colspan="2" style="border-bottom: 1px solid black"></td></tr><tr><td style="text-align:left"><em>Note:</em></td><td style="text-align:right"><sup>*</sup>p<0.1; <sup>**</sup>p<0.05; <sup>***</sup>p<0.01</td></tr> </table> ] --- # Our first model We do need some sense as to how well this model fit the data .pull-left[ ```r # install.packages('ggfortify') library(ggfortify) autoplot(myLinearModel) ``` ] .pull-right[ ![](04-stat_models_files/figure-html/09-Modeling-21-1.png)<!-- --> ] --- # Our first model Let's see if we have some strangeness going on -- .pull-left[ ```r ggplot(pbc, aes(x = bili))+geom_density() ``` We'd like this to be a bit more "Gaussian" for better behavior ] .pull-right[ ![](04-stat_models_files/figure-html/09-Modeling-23-1.png)<!-- --> ] --- # Our first model Let's see if we have some strangeness going on .pull-left[ ```r ggplot(pbc, aes(x = log(bili)))+geom_density() ``` ] .pull-right[ ![](04-stat_models_files/figure-html/09-Modeling-25-1.png)<!-- --> ] --- # Our first model ```r myLinearModel2 <- lm(chol~log(bili) + albumin + copper + sex, data = pbc) summary(myLinearModel2) ``` ``` Call: lm(formula = chol ~ log(bili) + albumin + copper + sex, data = pbc) Residuals: Min 1Q Median 3Q Max -448.77 -96.23 -26.77 40.76 1221.21 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 128.3685 132.9579 0.965 0.3351 log(bili) 124.2339 14.8852 8.346 3.39e-15 *** albumin 53.6093 33.2245 1.614 0.1078 copper -0.3775 0.1743 -2.166 0.0312 * sexf 19.6595 39.1715 0.502 0.6161 --- Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1 Residual standard error: 207.4 on 277 degrees of freedom (136 observations deleted due to missingness) Multiple R-squared: 0.2163, Adjusted R-squared: 0.205 F-statistic: 19.11 on 4 and 277 DF, p-value: 6.792e-14 ``` --- # Our first model ```r tbl_regression(myLinearModel2) ```
Characteristic
Beta
95% CI
1
p-value
log(bili)
124
95, 154
<0.001
albumin
54
-12, 119
0.11
copper
-0.38
-0.72, -0.03
0.031
sex
m
—
—
f
20
-57, 97
0.6
1
CI = Confidence Interval

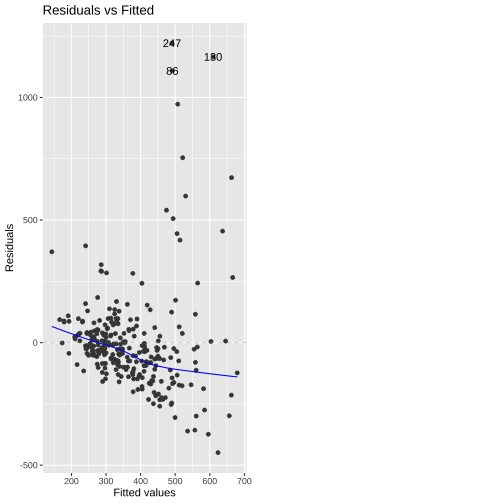

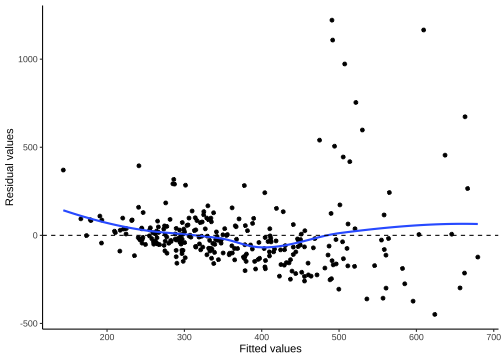

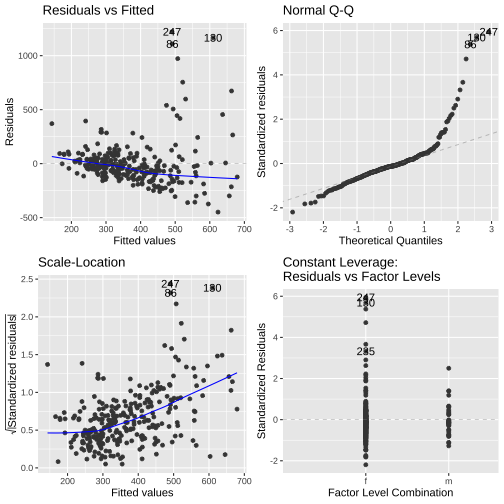

--- # Our first model ```r autoplot(myLinearModel2) ``` ![](04-stat_models_files/figure-html/09-Modeling-27-1.png)<!-- --> --- # Just the residual plot, please ```r autoplot(myLinearModel2, which=1) ``` ![](04-stat_models_files/figure-html/09-Modeling-28-1.png)<!-- --> -- > OR --- # Just the residual plot, please ```r d <- broom::augment(myLinearModel2, newdata=pbc) d ``` ``` # A tibble: 418 × 22 id time status trt age sex ascites hepato spiders edema bili chol <int> <int> <int> <int> <dbl> <fct> <int> <int> <int> <dbl> <dbl> <int> 1 1 400 2 1 58.8 f 1 1 1 1 14.5 261 2 2 4500 0 1 56.4 f 0 1 1 0 1.1 302 3 3 1012 2 1 70.1 m 0 0 0 0.5 1.4 176 4 4 1925 2 1 54.7 f 0 1 1 0.5 1.8 244 5 5 1504 1 2 38.1 f 0 1 1 0 3.4 279 6 6 2503 2 2 66.3 f 0 1 0 0 0.8 248 7 7 1832 0 2 55.5 f 0 1 0 0 1 322 8 8 2466 2 2 53.1 f 0 0 0 0 0.3 280 9 9 2400 2 1 42.5 f 0 0 1 0 3.2 562 10 10 51 2 2 70.6 f 1 0 1 1 12.6 200 # … with 408 more rows, and 10 more variables: albumin <dbl>, copper <int>, # alk.phos <dbl>, ast <dbl>, trig <int>, platelet <int>, protime <dbl>, # stage <int>, .fitted <dbl>, .resid <dbl> ``` --- # Just the residual plot, please ```r ggplot(d, aes(x = .fitted, y = .resid))+geom_point()+ geom_smooth(se=F)+ labs(x = 'Fitted values', y = 'Residual values')+ geom_hline(yintercept=0, linetype=2) + theme_classic() ``` ![](04-stat_models_files/figure-html/09-Modeling-30-1.png)<!-- --> --- # Predictions ```r head(predict(myLinearModel2, newdata = pbc)) ``` ``` 1 2 3 4 5 6 560.7384 361.4248 277.4503 333.0571 435.3173 314.7947 ``` The `newdata` has to have the same format and components as the original data the model was trained on --- # Categorical predictors ```r myLM3 <- lm(chol ~ log(bili) + sex, data = pbc) broom::tidy(myLM3) ``` ``` # A tibble: 3 × 5 term estimate std.error statistic p.value <chr> <dbl> <dbl> <dbl> <dbl> 1 (Intercept) 283. 36.6 7.71 2.14e-13 2 log(bili) 99.6 12.1 8.22 7.37e-15 3 sexf 32.5 37.8 0.858 3.92e- 1 ``` R has a somewhat unfortunate notation for categorical varialbes here, as `{variable name}{level}` --- class: inverse, middle, center # Logistic regression --- # The logistic transformation For an outcome which is binary (0/1), what is really modeled is the **probability** that the outcome is 1, usually denoted by _p_. However, we know `\(0 \leq p \leq 1\)`, so what if the model gives a prediction outside this range!! The logistic transform takes _p_ to $$ \text{logit}(p) = \log\left(\frac{p}{1-p}\right) $$ and we model _logit(p)_, which has a range from `\(-\infty\)` to `\(\infty\)` --- # Logistic regression Logistic regression is a special case of a **generalized linear model**, so the function we use to run a logistic regression is `glm` ```r myLR <- glm(spiders ~ albumin + bili + chol, data = pbc, family = binomial) myLR ``` ``` Call: glm(formula = spiders ~ albumin + bili + chol, family = binomial, data = pbc) Coefficients: (Intercept) albumin bili chol 2.3326484 -0.9954927 0.0995915 -0.0003176 Degrees of Freedom: 283 Total (i.e. Null); 280 Residual (134 observations deleted due to missingness) Null Deviance: 341.4 Residual Deviance: 315.2 AIC: 323.2 ``` - We have to add the `family = binomial` as an argument, since this is a special kind of GLM - All these models only use complete data; they kick out rows with missing data --- # Logistic regression ```r broom::tidy(myLR) ``` ``` # A tibble: 4 × 5 term estimate std.error statistic p.value <chr> <dbl> <dbl> <dbl> <dbl> 1 (Intercept) 2.33 1.30 1.80 0.0717 2 albumin -0.995 0.362 -2.75 0.00595 3 bili 0.0996 0.0344 2.89 0.00381 4 chol -0.000318 0.000615 -0.517 0.605 ``` -- ```r broom::glance(myLR) ``` ``` # A tibble: 1 × 8 null.deviance df.null logLik AIC BIC deviance df.residual nobs <dbl> <int> <dbl> <dbl> <dbl> <dbl> <int> <int> 1 341. 283 -158. 323. 338. 315. 280 284 ``` --- # Logistic regression ```r tbl_regression(myLR) ```
Characteristic
log(OR)
1
95% CI
1
p-value
albumin
-1.0
-1.7, -0.30
0.006
bili
0.10
0.04, 0.17
0.004
chol
0.00
0.00, 0.00
0.6
1
OR = Odds Ratio, CI = Confidence Interval
--- # Logistic regression ```r tbl_regression(myLR, exponentiate = TRUE) ```
Characteristic
OR
1
95% CI
1
p-value
albumin
0.37
0.18, 0.74
0.006
bili
1.10
1.04, 1.19
0.004
chol
1.00
1.00, 1.00
0.6
1
OR = Odds Ratio, CI = Confidence Interval
--- # Predictions from logistic regression ```r head(predict(myLR)) ``` ``` 1 2 3 4 5 6 1.10554163 -1.77506554 -1.04814132 -0.09414055 -0.93144911 -1.62851203 ``` -- These are on the "wrong" scale. We would expect probabilities -- ```r head(predict(myLR, type='response')) ``` ``` 1 2 3 4 5 6 0.7512970 0.1449135 0.2595822 0.4764822 0.2826308 0.1640343 ``` -- or you can use `plogis(predict(myLR))` for the inverse logistic transform --- class: inverse, middle, center # Model selection --- # How to get the "best" model Generally getting to the best model involves - looking at a lot of graphs - Fitting lots of models - Comparing the model fits to see what seems good Sometimes if you have two models that fit about the same, you take the smaller, less complex model (Occam's Razor) Generally it is not recommended that you use automated model selection methods. It screws up your error rates and may not be the right end result for your objectives -- > Model building and selection is an art --- # Clues to follow You can look at the relative weights (size of coefficient and its p-value) of different predictors - These weights will change once you change the model, so be aware of that -- You can trim the number of variables based on collinearities - If several variables are essentially measuring the same thing, use one of them -- You can look at residuals for clues about transformations -- You can look at graphs, as well as science, for clues about interactions (synergies and antagonisms) --- # Automated model selection ```r # install.packages('leaps') library(leaps) mtcars1 <- mtcars %>% mutate(across(c(cyl, vs:carb), as.factor)) all_subsets <- regsubsets(mpg~., data = mtcars1) all_subsets ``` ``` Subset selection object Call: regsubsets.formula(mpg ~ ., data = mtcars1) 16 Variables (and intercept) Forced in Forced out cyl6 FALSE FALSE cyl8 FALSE FALSE disp FALSE FALSE hp FALSE FALSE drat FALSE FALSE wt FALSE FALSE qsec FALSE FALSE vs1 FALSE FALSE am1 FALSE FALSE gear4 FALSE FALSE gear5 FALSE FALSE carb2 FALSE FALSE carb3 FALSE FALSE carb4 FALSE FALSE carb6 FALSE FALSE carb8 FALSE FALSE 1 subsets of each size up to 8 Selection Algorithm: exhaustive ``` --- # Automated model selection Which has the best R<sup>2</sup>? ```r ind <- which.max(summary(all_subsets)$adjr2) summary(all_subsets)$which[ind,] ``` ``` (Intercept) cyl6 cyl8 disp hp drat TRUE TRUE FALSE FALSE TRUE FALSE wt qsec vs1 am1 gear4 gear5 TRUE FALSE TRUE TRUE FALSE FALSE carb2 carb3 carb4 carb6 carb8 FALSE FALSE FALSE FALSE FALSE ```
