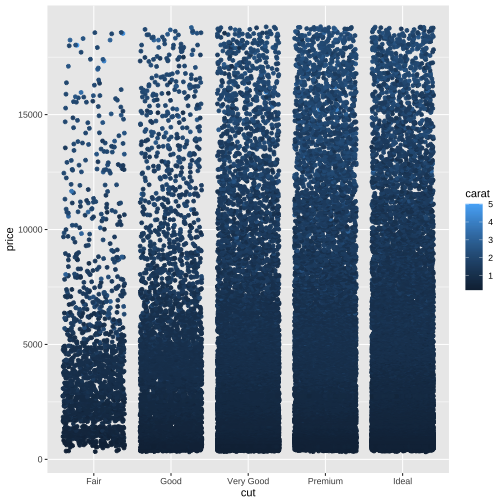

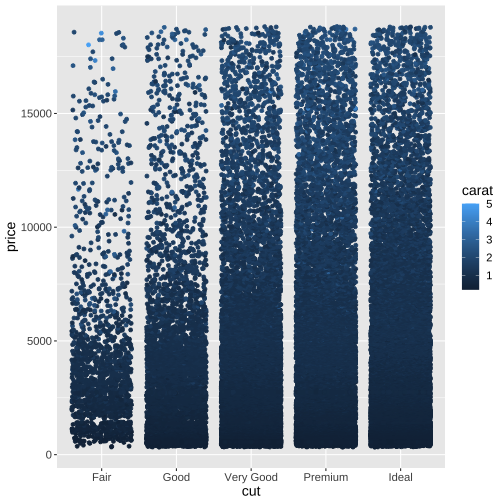

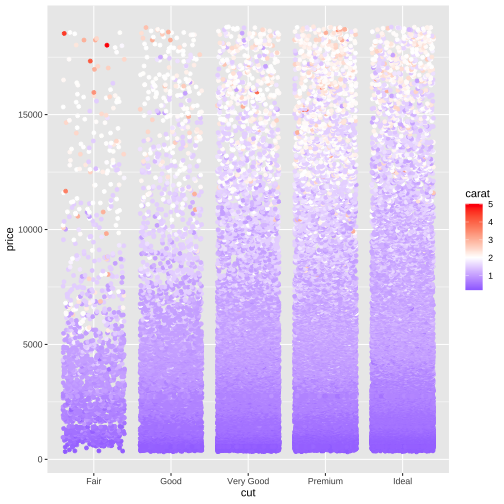

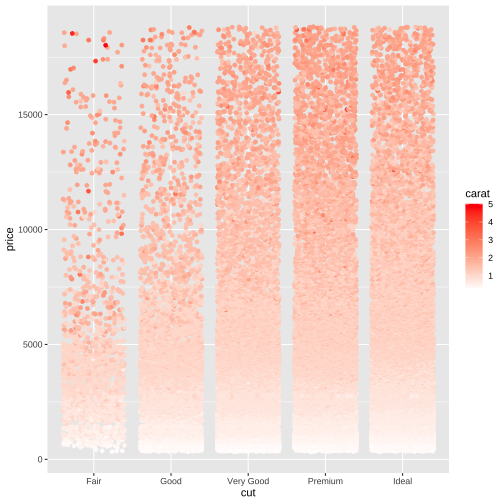

class: center, middle, inverse, title-slide # Themes ### Abhijit Dasgupta, PhD --- layout: true <div class="my-header"> <span>BIOF 339: Practical R</span></div> </div> --- class: middle, center # Customization --- ## Colors ggplot2 has several ways to customize colors 1. If colors are based on categorical data - `scale_color_manual` - `scale_fill_manual` 1. If colors are based on continuous data - `scale_{color,fill}_gradient` makes sequential gradients (specify low and high colors) - `scale_{color,fill}_gradient2` makes divergent gradients (specify low, middle and high colors) --- ## Colors .pull-left[ ```r (g1 <- ggplot(diamonds, aes(x = cut, y = price, color = carat))+ geom_jitter() ) ``` ] .pull-right[ ![](05-themes_files/figure-html/06-Lecture6-1-1.png)<!-- --> ] --- ## Colors .pull-left[ ```r g1 + scale_color_gradient(low='white',high = 'red') ``` ] .pull-right[ ![](05-themes_files/figure-html/06-Lecture6-2-1.png)<!-- --> ] --- ## Colors .pull-left[ ```r g1 + scale_color_gradient2(low = 'blue', mid='white', high='red', midpoint = 2) ``` ] .pull-right[ ![](05-themes_files/figure-html/06-Lecture6-3-1.png)<!-- --> ] --- ## [ggsci](https://cran.r-project.org/web/packages/ggsci/vignettes/ggsci.html) # These are palettes based on scientific journals and sci-fi shows ```r library(ggsci) plt <- ggplot(penguins, aes(bill_length_mm, body_mass_g, color=species))+ geom_point() ``` .pull-left[ ```r plt + scale_color_lancet() ``` ![](05-themes_files/figure-html/unnamed-chunk-2-1.png)<!-- --> ] .pull-right[ ```r plt + scale_color_npg() ``` ![](05-themes_files/figure-html/unnamed-chunk-3-1.png)<!-- --> ] --- # RColorBrewer This package is a wrapper around ColorBrewer (https://colorbrewer2.org), which is meant to create sequential and divergent color palettes for discrete classes. These palettes are available in **ggplot2** as `scale_color_brewer` and `scale_fill_brewer` There are also a variation of these for continuous data, using these color schemes to create gradients. These are accessed using `scale_color_distiller` and `scale_fill_distiller` ```r ggplot(penguins, aes(bill_length_mm, body_mass_g, color=species))+ geom_point()+ scale_color_brewer(type='qual', palette=2) ``` ![](05-themes_files/figure-html/unnamed-chunk-4-1.png)<!-- --> --- ## RColorBrewer .pull-left[ There are three kinds of palettes: sequential (_seq_), divergent (_div_) and qualitative (_qual_) Sequential palettes are good for scales that are ordered + Income + death rates Divergent palettes are good when you want to show both extremes + Heatmaps ] .pull-right[ ![](05-themes_files/figure-html/unnamed-chunk-5-1.png)<!-- --> ] --- ## [viridis](https://cran.r-project.org/web/packages/viridis/vignettes/intro-to-viridis.html) The **viridis** package provides color palettes that are not only pleasing, but are robust to most forms of color-blindness, including green-blind (deuteranopia), red-blind (protanopia) and blue-blind (tritanopia) ```r library(viridis) ggplot(penguins, aes(bill_length_mm, body_mass_g, color=species))+ geom_point()+ scale_color_viridis(discrete=TRUE) + theme_bw() ``` ![](05-themes_files/figure-html/unnamed-chunk-6-1.png)<!-- --> --- ## Text The `extrafont` package allows you to use fonts already on your computer in your graphics. .pull-left[ ```r library(extrafont) loadfonts() g1 + theme(text = element_text(family='Georgia')) ``` ] .pull-right[ ![](05-themes_files/figure-html/06-Lecture6-4-1.png)<!-- --> ] --- ## Text The `extrafont` package allows you to use fonts already on your computer in your graphics. .pull-left[ ```r g1 + theme(text = element_text(family='Lobster Two', size=14)) ``` ] .pull-right[ ![](05-themes_files/figure-html/06-Lecture6-5-1.png)<!-- --> ] --- ## Grey palettes We might want gray-scale palettes, to avoid journal color fees, for example ```r plt + scale_color_grey()+theme_bw() ``` ![](05-themes_files/figure-html/unnamed-chunk-7-1.png)<!-- --> --- class: middle, inverse # Themes # --- ## ggplot2 themes There are several themes built into **ggplot2** | | | |----------------|---------------| | theme_minimal | theme_bw | | theme_dark | theme_gray | | theme_classic | theme_minimal | | theme_linedraw | theme_classic | + You can modify any of these themes using the `theme` function + You can set a particular theme for a document at the very beginning using `theme_set` ```r theme_set(theme_classic) ``` --- ## ggthemes (https://jrnold.github.io/ggthemes/) ## <iframe src="https://yutannihilation.github.io/allYourFigureAreBelongToUs/ggthemes/" width="100%" height="800"></iframe> ---
